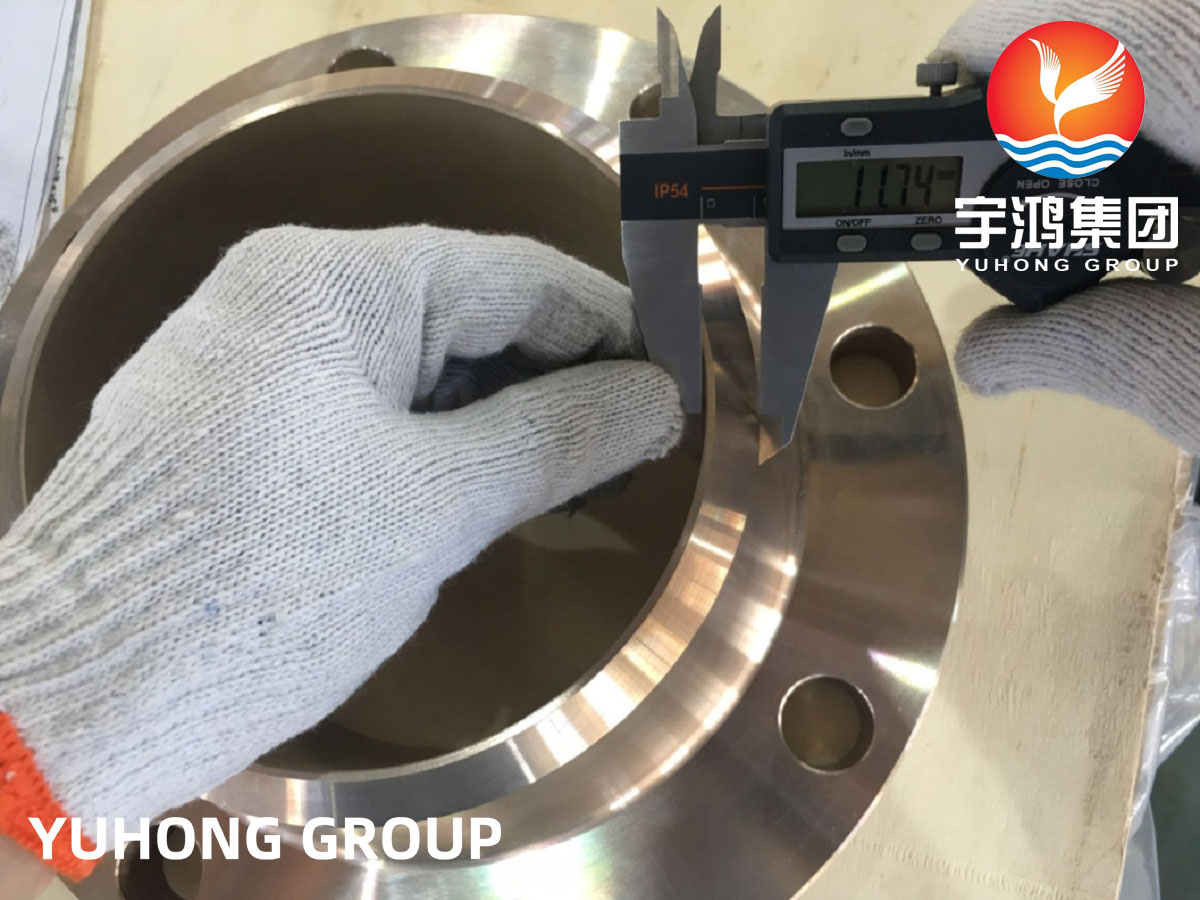

ASTM B564 CuNi 90/10 C70600 2.0872 Forged Steel Flanges Welding Neck Or Slip On RF FF Flange

Brand Name : YUHONG

Model Number : ASTM B564 CuNi 90/10 C70600

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Place of Origin : China

MOQ : 10PC

Price : negotiation

Payment Terms : L/C,T/T,Money Gram,Western Union

Supply Ability : 1000 Tons Per Month

Delivery Time : 25DAYS-50DAYS

Packaging Details : export package

Type : Welding-Neck/Thread/Loose/Slip-On/Bind/Plate

Face : RF/FF/RTJ/M/F/T/G/MF/TG

Pressure class : DN10-DN2000,PN6-PN400,150LBS-10000LBS

Contact Now

ASTM B564 C70600 Cu-Ni 90/10 copper nickel Forged Welding Flange

Introduction

Flanges are parts that are connected to each other between pipes. The flanges have holes, and the bolts make the two flanges close. Gasket between flanges. Flanges include threaded connection flange, welding flange and clamp flange Flanges are used in pairs. Wire flanges can be used for low pressure piping and welded flanges can be used for pressure above 4 kg. Place a gasket between the two flanges and bolt them down Flange thickness of different pressure is different, they use different bolts. Pumps and valves, when connected to the pipe, the parts of these equipment are also made into the corresponding flange shape, also known as the flange connection

C70600 Copper Nickel "90/10" Chemical Composition

Grade Cu Mn Pb Ni Fe Zn
Copper Nickel Flanges 88.6 minimum 1.0 maximum .05 maximum 9-11 maximum 1.8 maximum 1 maximum

Copper Nickel Flanges Mechanical Properties

Element Density Yield Strength (0.2%Offset) Elongation Melting Point Tensile Strength
90/10 Copper Nickel Flanges 0.323 lb/in3 at 68 F 20000 psi 30 % 2260 F 50000 psi

Cu-Ni 90/10 Plate Flange Pressure Rating

Copper Nickel Flanges Pressure And Temperature Ratings
Temperature °F Class 150 As Per ASME B16.5 Class 300 As Per ASME B16.5 Class 400 As Per ASME B16.5 Class 600 As Per ASME B16.5 Class 900 As Per ASME B16.5 Class 1500 As Per ASME B16.5 Class 2500 As Per ASME B16.5
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 310 410 615 925 1545 2570
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1200 20 155 205 310 465 770 1285
1250 20 115 150 225 340 565 945
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1400 20 50 65 95 145 240 400
1450 15 35 45 70 105 170 285
1500 10 25 35 55 80 135 230
