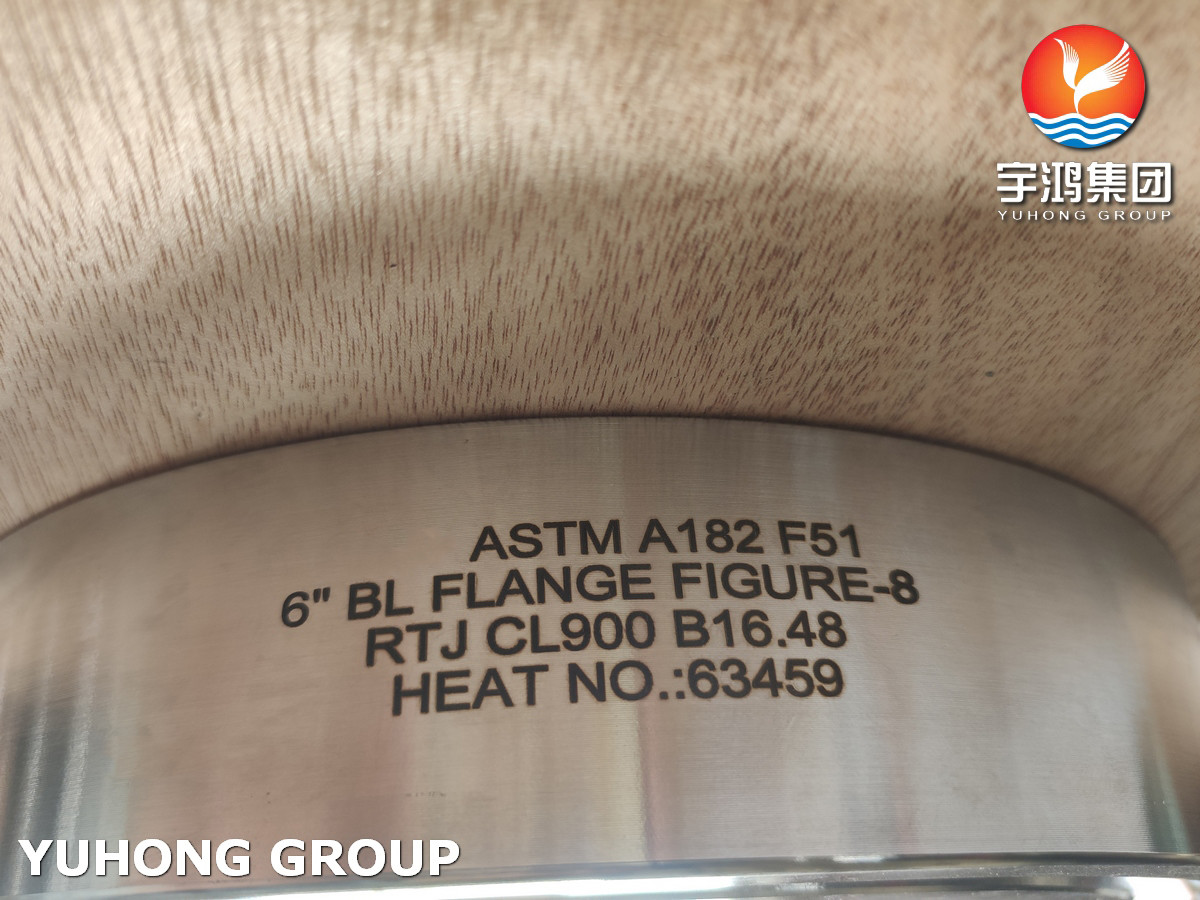

ASTM A182 F51 Duplex Steel Spectacle Blind Flange / B16.48 RTJ Figure-8 Blanks

Brand Name : YUHONG

Model Number : ASTM A182 F51 Spetacle Blind Flange

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Place of Origin : CHINA

MOQ : 1PC

Payment Terms : L/C, T/T

Delivery Time : 7 DAYS

Packaging Details : Plywood case, Pallet

Standard : ASTM A182 / ASME SA182

Dimension : ASME B16.48, B16.47 Series A or Series B

Material : Duplex Steel UNS S32750, S31803, S32760, stainless steel 304, 304L, 316L, etc

Type : Threaded Flange,Slip On Flange,Socket Weld Flange,Weld Neck Flange,LAP Joint Flange, Blind Flange

Pressure : 150#, 300#, 600#, 900#, 1500# 2500# etc.

Sealing Type : Flat Face, Raised Face, Ring Joint

Process : Forged,Drilling/Bending/Stamping,Casting,sand Casting&CNC Machining,Forging+machining+heating Treatment

Inspection : Mechinical Property Inspection,Factory Or Third Party Assigned,100% Inspection

Application : Natural gas,chemical,petroleum,ship building,marine,paper making, metallurgy, electric, power, boiler

High Light : ASTM A182 F51 Spetacle Blind RTJ Flange, Duplex Steel Figure 8 Flange

Contact Now

ASME B16.48 ASTM A182 F51 Duplex Steel Spectacle Blind Flange Figure-8 Blanks


Figure-8 flanges, also known as sight or spectacle flanges, are specialized components used in piping systems to facilitate maintenance, isolation, and inspection of pipelines. The figure-8 design features two circular ends connected by a narrow waist, which offers flexibility in alignment and connection. The material can be made from various materials including carbon steel, stainless steel, and duplex stainless steel, depending on the application requirements. Their unique design allows for efficient operation and flexibility in various industrial applications.

Advantages:

  • Flexibility: The figure-8 design allows for slight misalignments, making installation easier and reducing stress on the pipe system.
  • Strength: Offers a good balance of strength and weight, making them suitable for high-pressure applications.
  • Corrosion Resistance: Depending on the material, they can offer excellent resistance to various corrosive environments.

ASTM A182 F51 Duplex Steel Flange Chemical Composition

C Mn Si P S Cr Mo Ni N Fe
0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22.0 – 23.0 3.0 – 3.5 4.50 – 6.50 0.14 – 0.20 63.72 min

ASTM A182 F51 Duplex Steel Flange Mechanical Table

Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
7.805 0.285 1420 – 1465 2588 – 2669

Other Types of Duplex Steel Flange

Duplex 2205 Flanges EN TYPE DIN

WN – Welding Neck

EN-TYPE 11

 DIN 2631
DIN 2632
DIN 2633
DIN 2634
DIN 2635
BL – Blind EN-TYPE 05 DIN 2527
SO – Slip On EN-TYPE 01/12

LJ – Lap Joint

EN-TYPE 02/04

 DIN 2641
DIN 2642
DIN 2655
DIN 2656
LWN – Long Welding Neck / Integral EN-TYPE 21
Welding Collars EN-TYPE 32/34
Super Duplex 2507 Flat Flange for Welding DIN 2573
DIN 2576
SW – Socket Weld EN-TYPE 14
THR – Threaded EN-TYPE 13 DIN 2566
Super Duplex 2507 Lap Joint Short Stub End DIN 2673

Product Usage & Application

  • Petrochemical Industry
  • Chemical Industry
  • Nuclear Power Plant Industry
  • Oil and Gas Industry
  • Research & Development
  • Mega Projects & Defense & Development Industries
  • Pulp & Paper Industry
  • Marine Applications


ASTM A182 F51 Duplex Steel Spectacle Blind Flange / B16.48 RTJ Figure-8 Blanks
