Stainless Steel Seamless Pipe ASTM A312 TP316Ti Chemical Boat Fittings Heat Exchanger

Yuhong Group Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

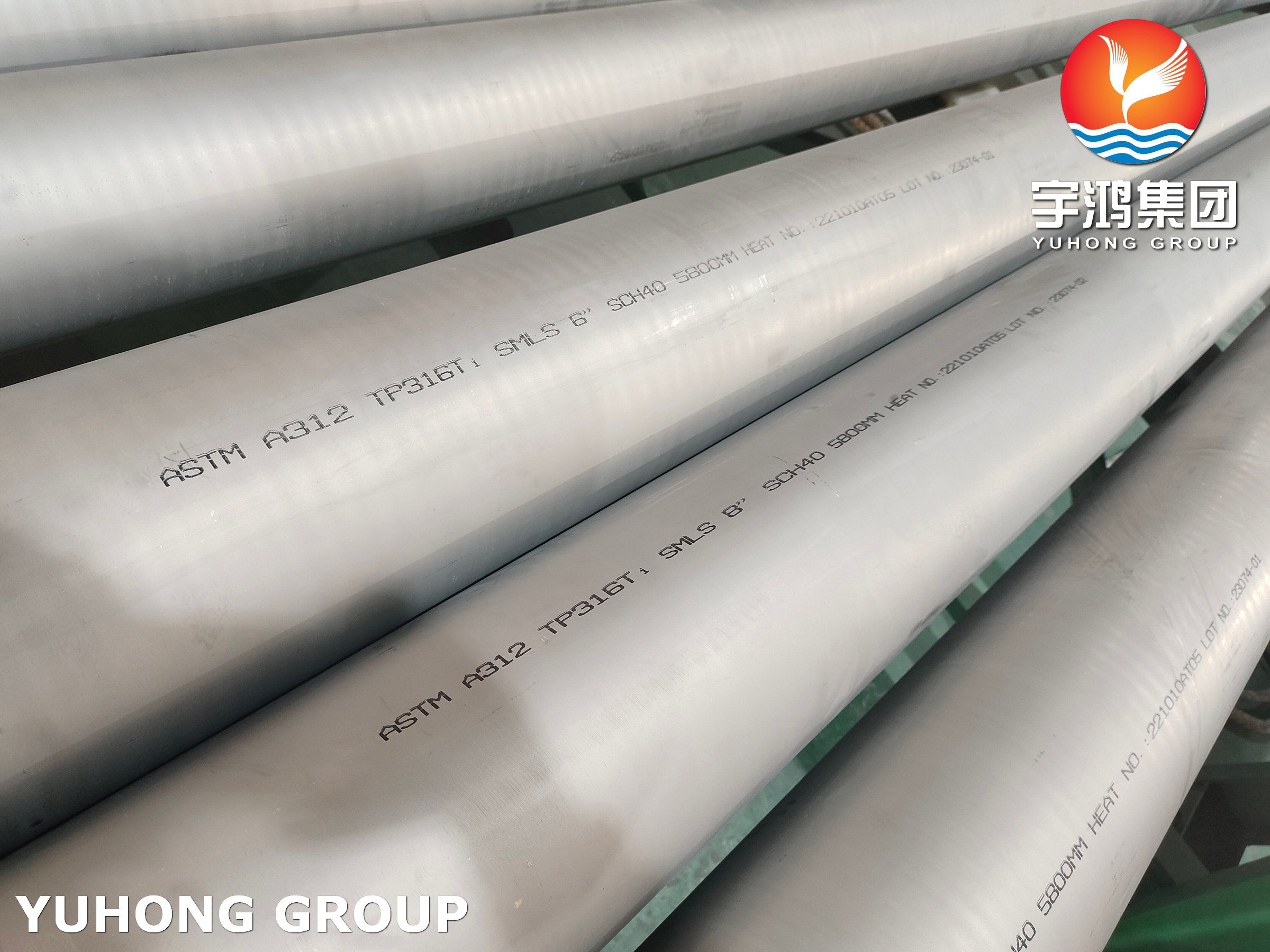

Stainless Steel Seamless Pipe ASTM A312 TP316Ti Chemical Boat Fittings Heat Exchanger

Brand Name : YUHONG GROUP

Model Number : TP316Ti

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Place of Origin : CHINA

MOQ : 1PC

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 10000 Ton/month

Delivery Time : Depends on quantity

Packaging Details : Bundle /Ply-wooden Case

Material Grade : TP316Ti

Standard : ASTM A312

Size : 1/2" NB TO 18" NB

W.T. : 3 mm to 100 mm

Length : Single Random, Double Random & Cut Length

NDT : ET HT UT PT

Packing : Ply-wooden Case /Iron Case/ Bundle

Appllication : Petrochemical/ Aviation /Food

Contact Now

Stainless Steel Seamless Pipe ASTM A312 TP316Ti Chemical Boat fittings Heat Exchanger

Overciew

316Ti stainless steel plate national standard 0Cr18Ni12Mo2Ti Chinese grade is 1Cr18Ni12Mo2Ti stainless steel plate,316Ti stainless steel plate is added to SUS316 steel with Ti to improve the resistance to intergranular corrosion. It is used in equipment that resists sulfuric acid, phosphoric acid, acetic acid and acetic acid. Chemical composition C:≤0.08,Si≤1.00,Mn≤2.00,P≤0.035,S≤0.030,Ni 11.00~14.00,Cr 16.00~19.00,Mo 1.80~2.50,Ti≥0.2~0.70,GB/T1220-1992 has this provision,usually also called Mo2Ti or 316Ti. Mechanical properties: YS(Mpa) ≥205,TS(Mpa) ≥520,EL(%) ≥40,Hv 200° or so.
321 is on the stainless steel has excellent high temperature stress rupture (Stress Rupture) performance and high temperature resistance to subduction (Creep Resistance) stress mechanical properties are better than 304 stainless steel. 321 chemical composition: carbon: 0.08 silicon: 1.00 manganese: 2.00 phosphorus: 0.045 sulfur: 0.030 nickel: 9.00-12.00 chromium: 17.00-19.00 titanium: 5C-0.70, German grade: X10CrNiTi189 austenitic stainless steel equivalent to the domestic grade 0Cr18Ni10Ti 321 Stainless steel is Ni-Cr-Mo type austenitic stainless steel, its performance is very similar to 304, but due to the addition of titanium metal, so that it has a better resistance to grain boundary corrosion and high temperature strength. Due to the addition of titanium metal, it effectively controls the formation of chromium carbide.

316Ti Chemical Composition

Grade C Ni Si N S Mn P Cr Mo
SS 316Ti min. - 10.0 - - - - - 16.0 2.00
max. 0.08 14.0 0.75 0.10 0.030 2.00 0.045 18.0 3.00

316 Ti Mechanical Property

Grade Tensile Strength (MPa) min Elongation (% in 50mm) min Yield Strength 0.2% Proof (MPa) min Hardness
Rockwell B (HR B) max Brinell (HB) max
SS 316Ti 515 35 205 75 205

316 Ti Physical Properties

Specific Heat (0-100°C) 500 J.kg-1.°K-1
Thermal Conductivity 14.6 W.m -1.°K-1
Thermal Expansion 16.5 mm/m/°C
Modulus Elasticity 193 GPa
Electrical Resistivity 7.4 μohm/cm
Density 7.99 g/cm3

ASTM A312 GRADE TP 316Ti Stainless Steel Tube Application

Chemical containers

Heat Exchangers

Food preparation equipment

Boat fittings

Threaded fasteners

Stainless Steel Seamless Pipe ASTM A312 TP316Ti Chemical Boat Fittings Heat Exchanger
