ASTM A213 TP316L Stainless Steel Seamless Tube Oil Gas Application
What is TP316L?
316 stainless steel is a grade of stainless steel produced in accordance with the ASTM standard in the U.S. 316 is equivalent to 0Cr17Ni12Mo2 stainless steel in China.
SS316 stainless steel has good plasticity, toughness, cold transformability and welding process performance.316 high temperature strength is better, 316L high temperature performance is poorer, but its corrosion resistance is better than 316.Because of its low carbon content, containing molybdenum 2%-3%, improve the corrosion resistance to reducing salts and a variety of inorganic organics acids, alkalis, salts and high temperature strength.
Basic features:
(1) Cold rolled products have a good glossy appearance;
2) due to the addition of Mo (2-3%), corrosion resistance, especially excellent pitting resistance
3) Excellent high temperature strength
4) excellent work hardening (weak magnetism after processing)
5) solid solution state non-magnetic
Chemical Composition of ATSM A213 TP316L Stainless Steel Seamless Tube
| Tube Material | | C | MN | SI | P | S | CR | MO | NI | N |
| SA213 TP316 Tube | Min | – | – | – | 0 | – | 16.0 | 2.00 | 10.0 | – |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 |
Mechanical Properties of ASTM A213 TP316L Stainless Steel Seamless Tube
| GRADE | TENSILE STRESS
(MPA) MIN | YIELD STR
0.2% PROOF
(MPA) MIN | ELONG
(% IN 50MM) MIN | HARDNESS |
| ROCKWELL B (HR B) MAX | BRINELL (HB) MAX |
| SS 316Tube | 515 | 205 | 40 | 95 | 217 |
Equivalent of ASTM A213 TP316L Stainless Steel Seamless Tube
| MATERIAL | UNS NO | OLD BRITISH | EN/ EURONORM | SWEDISH
SS | JAPANESE
JIS |
| BS | EN | NO | NAME |
| SA213 TP316 Tube | S31600 | 316S31 | 58H, 58J | 1.4401 | X5CrNiMo17-12-2 | 2347 | SUS 316 |
Size Range:
| Production | Outside Diameter | Wall Thickness |
| Heat Exchanger Tube | 6.00mm to 101.6mm | 0.5mm to 8mm |
Some of the quality tests carried out by us includes:
| Corrosion Test | Conducted only when specially requested by the client |
| Chemical Analysis | Test done as per required quality standards |
| Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
| Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
| Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing.
The tests conducted under this include:
- Eddy Current Testing
- O.P Testing
- Radiography Testing
| - Corrosion Testing
- Micro Testing
- Macro Testing
| - IGC Testing
- Ultrasonic testing
- Liquid Penetrate testing
|
Application:
Chemical Equipment
Oil and Gas
medical care
Food
Pressure vessel
Product Tags:
|
|

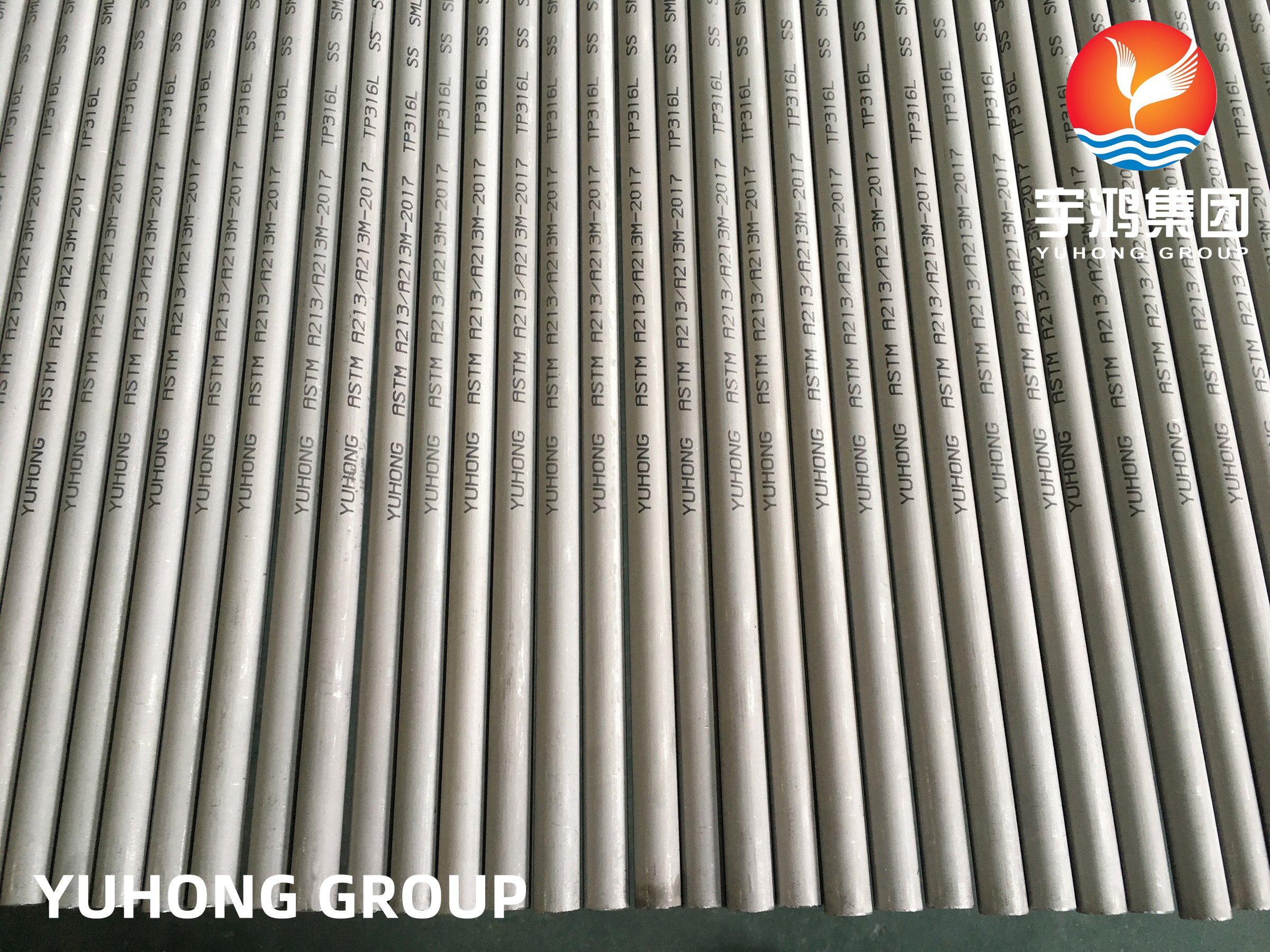

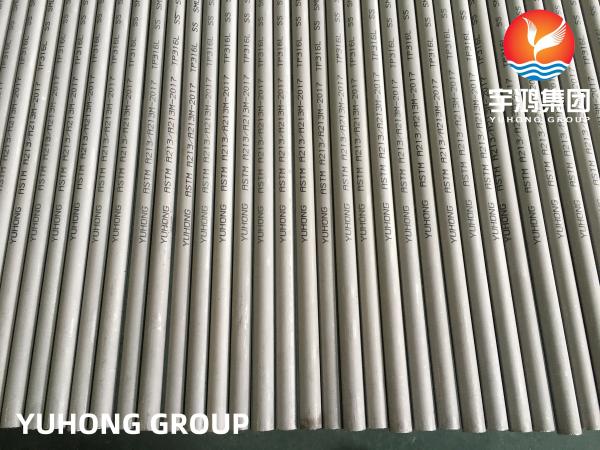

ASTM A213 TP316L Stainless Steel Seamless Tube Oil Gas Application Images
|
