15-5PH Stainless Steel (AMS 5659/ AMS 5862)
YUHONG GROUP deal with Austenitic Stainless Steel, Nickel Alloy Steel(Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 25 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004.
Technical Data Sheet
| Chemical Composition Limits |
| Weight% | C | Si | Mn | P+S max | Cr | Ni | Cu | Cb | Fe | Mo |
AMS 5659
15-5 | 0.07 | 1.0 | 1.0 | 0.03P
0.015S | 14.0-15.50 | 3.50-4.50 | 2.50-4.50 | 0.45 | Bal | 0.50
|
Alloy 15-5 is a precipitation hardening alloy exhibiting high strength and hardness with moderate corrosion resistance. Alloy 15-5 is a variant of the older 17-4 and 15-5 was designed to have greater toughness than S17400, especially in the through-thickness (short transverse) direction. Alloy 15-5 is used in applications that require high transverse strength and toughness such as engine parts, aircraft components, nuclear reactor components etc.
Typical Mechanical Properties
| Material | Condition | Ultimate Tensile Strength (ksi) | 0.2 % Yield Strength (ksi) | Elongation % in 2D | % Reduction of Area | Rockwell C Hardness |
Alloy 15-5 PH
Bar AMS 5659 | Cond A | - | - | - | - | 363 HB max |
Alloy 15-5 PH
Bar AMS 5659 | H900 | 190 | 170 | 10 | 35 | 388-444 |
Alloy 15-5 PH
Bar AMS 5659 | H925 | 170 | 155 | 10 | 38 | 375-429 |
Alloy 15-5 PH
Bar AMS 5659 | H1025 | 155 | 145 | 12 | 45 | 331-401 |
Alloy 15-5 PH
Bar AMS 5659 | H1075 | 145 | 125 | 13 | 45 | 311-375 |
Alloy 15-5 PH
Bar AMS 5659 | H1100 | 140 | 115 | 14 | 45 | 302-363 |
Alloy 15-5 PH
Bar AMS 5659 | H1150 | 135 | 105 | 16 | 50 | 277-352 |
| Material | Condition | Ultimate Tensile Strength (ksi) | 0.2 % Yield Strength (ksi) | Elongation % in 2D | % Reduction of Area | Rockwell C Hardness |
Alloy 15-5 PH
Sheet/Plate AMS 5862 | Cond A | - | - | - | - | 38 max |
Alloy 15-5 PH
Sheet/Plate AMS 5862 | H900 | 190 | 170 | 5 | - | 40-47 |
Alloy 15-5 PH
Sheet/Plate AMS 5862 | H925 | 170 | 155 | 5 | - | 38-45 |
Alloy 15-5 PH
Sheet/Plate AMS 5862 | H1025 | 155 | 145 | 5 | - | 35-42 |
Alloy 15-5 PH
Sheet/Plate AMS 5862 | H1075 | 145 | 125 | 5 | - | 33-39 |
Alloy 15-5 PH
Sheet/Plate AMS 5862 | H1100 | 140 | 115 | 5 | - | 32-38 |
Alloy 15-5 PH
Sheet/Plate AMS 5862 | H1150 | 135 | 105 | 8 | - | 28-37 |
Availability
15-5 is available in Bar ( Round, Flat, Hexagon, Square), Forgings, Tube, Wire, Rings, Sheet, Strip and Plate. View Stock List, Plate Stock List or contact Sales for further availability.
Specifications
15-5 ESR to the following specifications:
AMS 5659 TYPE 2
ASTM-A-484
UNS-S15500
15-5 PH VAC MELT to the following specifications:
AMS 5659 TYPE 1
ASTM-A-484
15-5 VM COND H-1025 to the following specifications
AMS-5659 T-1 (COND H-1025)
AMS-H-6875
ASTM-A-484
ASTM-A-564 TYPE XM-12 (COND H-1025)
15-5 VM COND H-1050 to the following specifications
AMS-5659 T-1 (EXC. COND)
AMS-H-6875
ASTM-A-484
ASTM-A-564 TYPE XM-12 (EXC. COND)
BAC-5619 (150-170 MIN. TENS.)
AMS 5862 Sheet, Strip and Plate.
AMS 5826 Welding Wire
UNS : S15500
Product Tags:
|
|

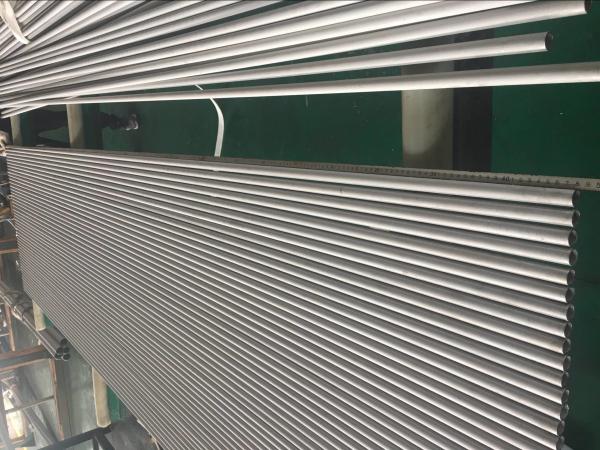

Ams 5659/ Ams 5862 Stainless Steel Seamless Tube Alloy 15-5ph Images
|
